GC002-305S-J - 30 inch - 5 Burners Built-in Stainless Steel Gas Cooktop
Key Features
- 5 Burners Power: 1x 10,500 BTU + 1x 8,189 BTU + 2x 6,414 BTU + 1x 3,071 BTU
- Fuel Type: NG/LPG
- Grate Material: Heavy-duty cast iron
- Control Type: Bakelite knobs control
- Ignition Type: Electronic pulse ignition
- Voltage: 110V, 3-prong plug
- Cable Length: 4.5 Feet
- Installation Type: Built-in
Warranty & Refund
- We provide the 36-Month Free Warranty for all products purchase.
- You may return items purchased on www.tieasyfactory.com within 30 days of purchase for a full refund.
- Learn More.
Shipping
- We offer FREE STANDARD SHIPPING for all orders around mainland US.
- Each order requires 1 business days for processing.
- Usually, it takes approximately 4-7 business days for express shipping depending on different areas and shipping carriers.
- Learn More.
Features

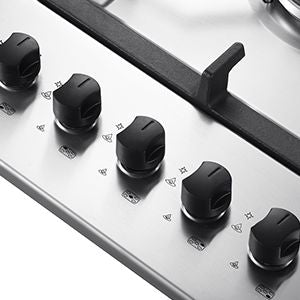

Melt-proof Knobs
Melt-proof and anti-scalding bakelite knob controls, with child protection lock, need to press and rotate at the same time to ignite, preventing children from accidentally touching.

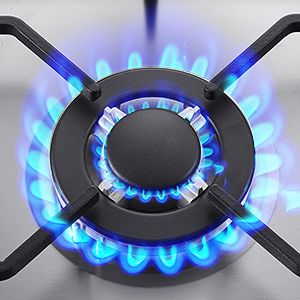

Powerful Burners
The 5 high quality burners always provide full combustion and stable flame,ensuring that every corner of the pan gets even heat and preventing energy loss. Each burner operates independently and can cook multiple dishes at the same time, helping you create delicious and nutritious meals.

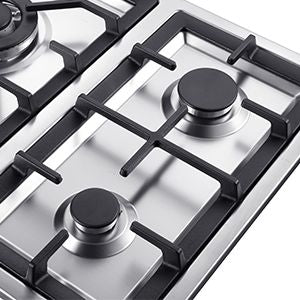

Heavy-Duty Cast Iron Pot Stand
Grates are heavy-duty and continuous across the top of the cooktop, making it easy to move pots and pans around with no snags. And can support the pot firmly, avoid letting the pan drop off.
This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

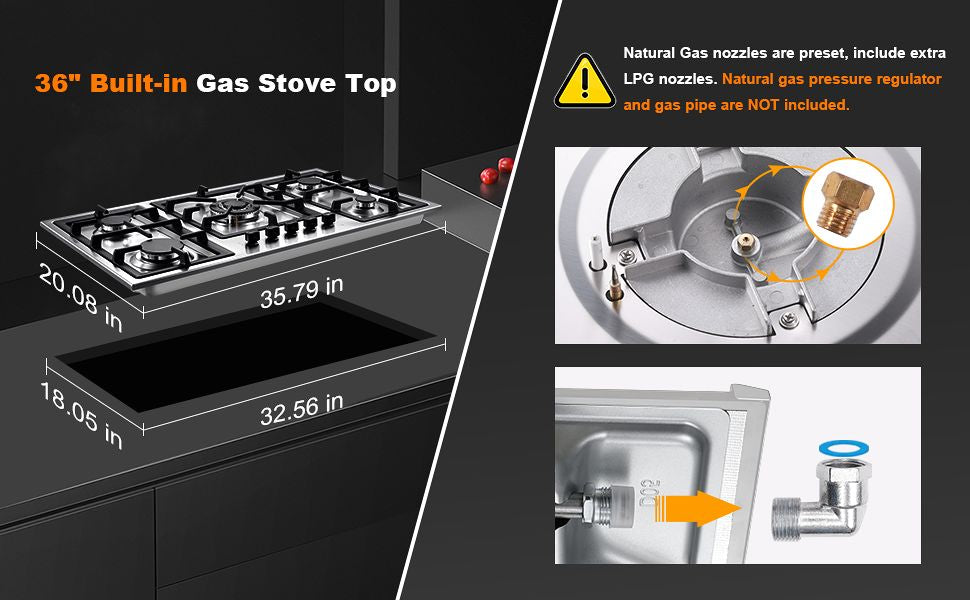

Product Dimensions: 35.79" W x 20.08" L x 3.35"H
Cut out Dimensions: 32.56" Wx 18.5" L
For a correct installation, the following precautions must be followed:
- The gas stove should be connected to the gas-supply by a registered installer. During installation it is essential to fit an approved gas tap to isolate the supply from the stove for the convenience of any subsequent removal or servicing.
- Once the stove was installed, make sure all the connections are properly sealed, use a soapy water to test, never use flame.
- Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness.
- In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.
- When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips, in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.
- DO NOT install the stove in a damp closed environment, because long-term moisture will cause rust in the stainless steel panel.
Specifications
Refer to all the specification information of the product, if you still have doubts, please contact us!
Details
5
Gas Powered
Flame-Out Protection
Electronic
Drop-In
110 Volts
20"D x 35.8"W x 3.3"H
36 inch
stainless steel
