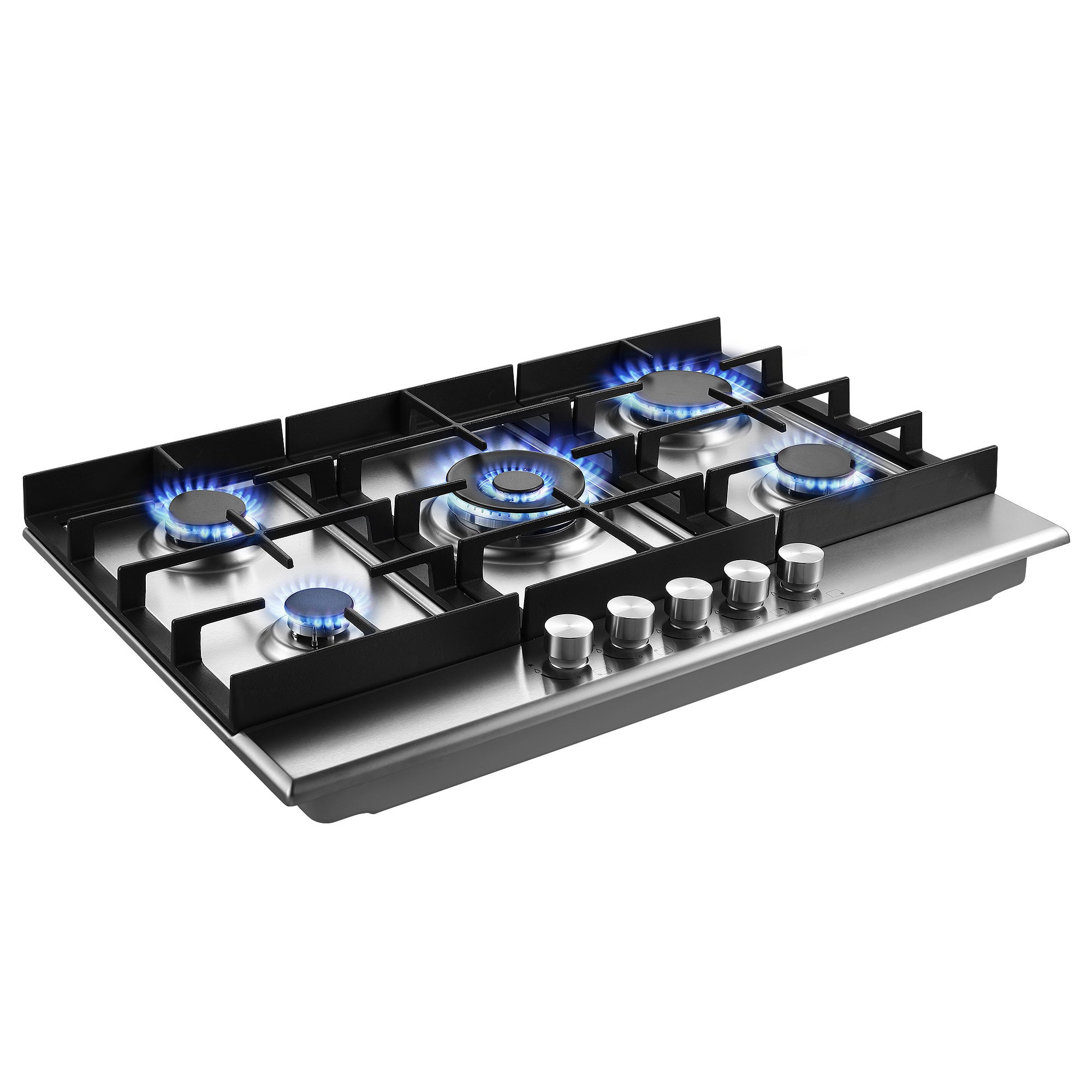

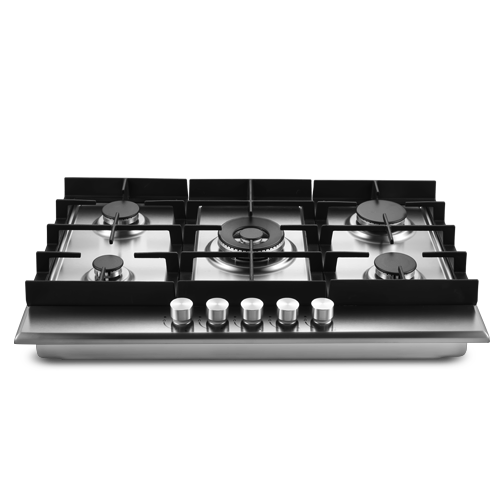

GC002-305S - 30 inch - 5 Burners Built-in Stainless Steel Gas Cooktop

Sale price$199.99 Regular price$249.99
Save 20%

How are we different from Amazon?

Extended Warranty

Add 12 months of warranty for free, for a total of 36 months of warranty time.

Get Free Gifts

Fill in your real date of birth on the successful checkout page and get a free gifts every year!

Online technical support

The option of a faster online chat can quickly resolve your queries.

Features

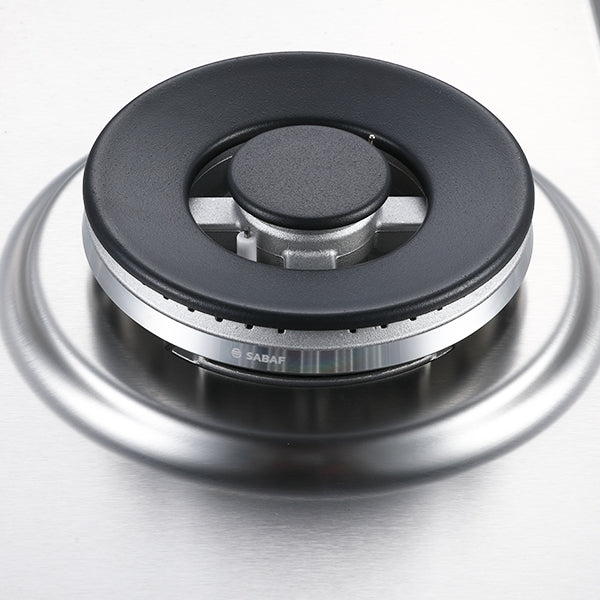

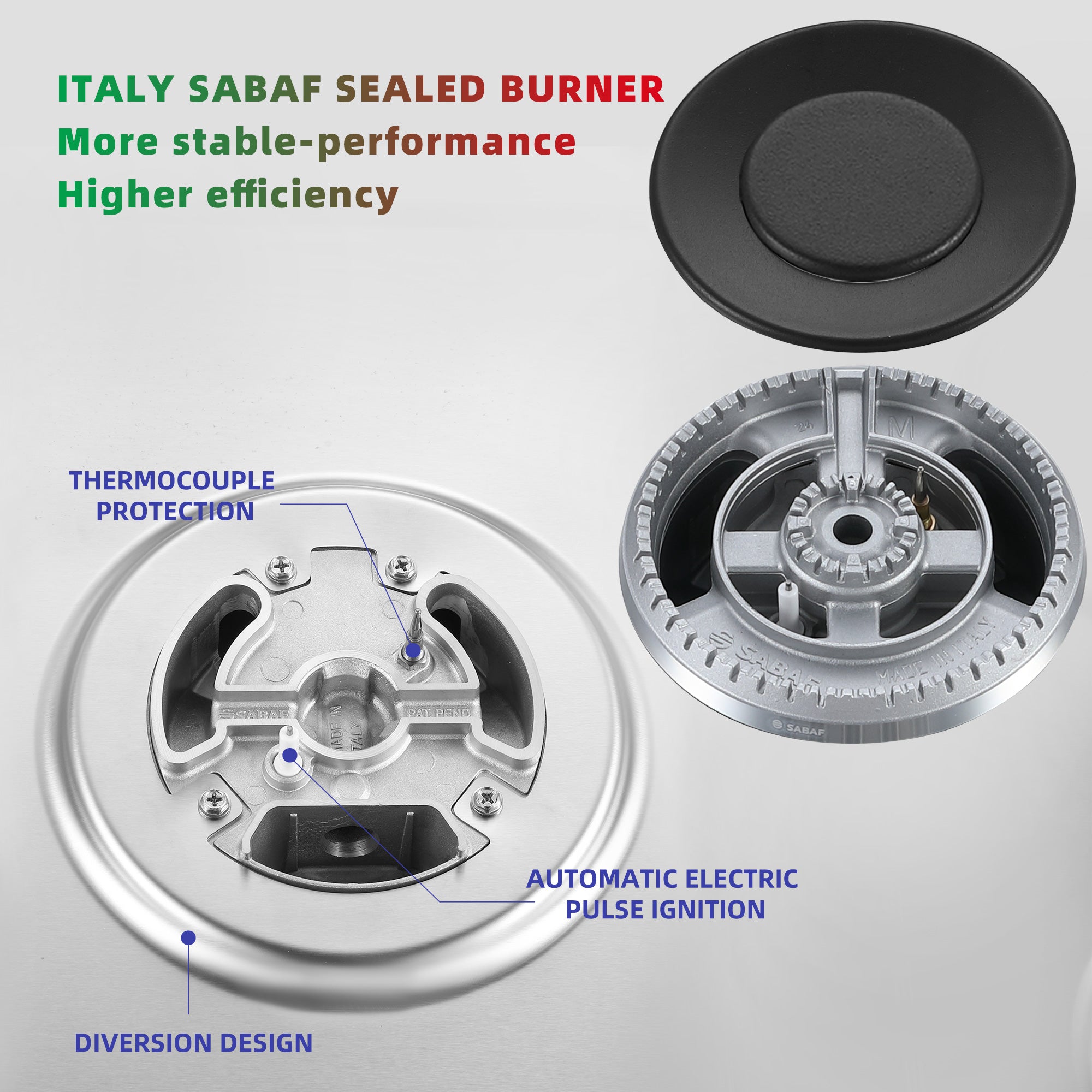

High Efficiency Sealed Burner

High Efficiency Sealed Burner

This gas stove top 30 inch has five independent burners with four burner powers,meet your cooking needs. Dual fuel burners, more stable-performance and higher efficiency.

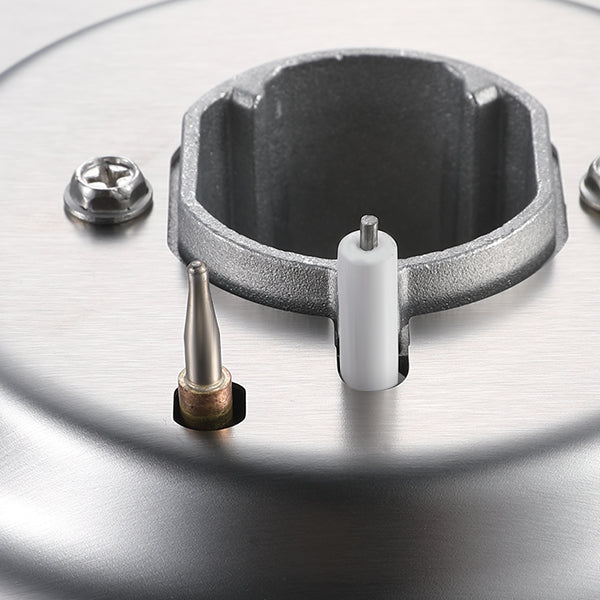

Thermocouple Protection

Thermocouple Protection

Every burner unit is installed a thermocouple flame-out failure system (FFD), will automatically cut off the gas supply when the flame goes out unexpectedly, to avoid gas leakage.

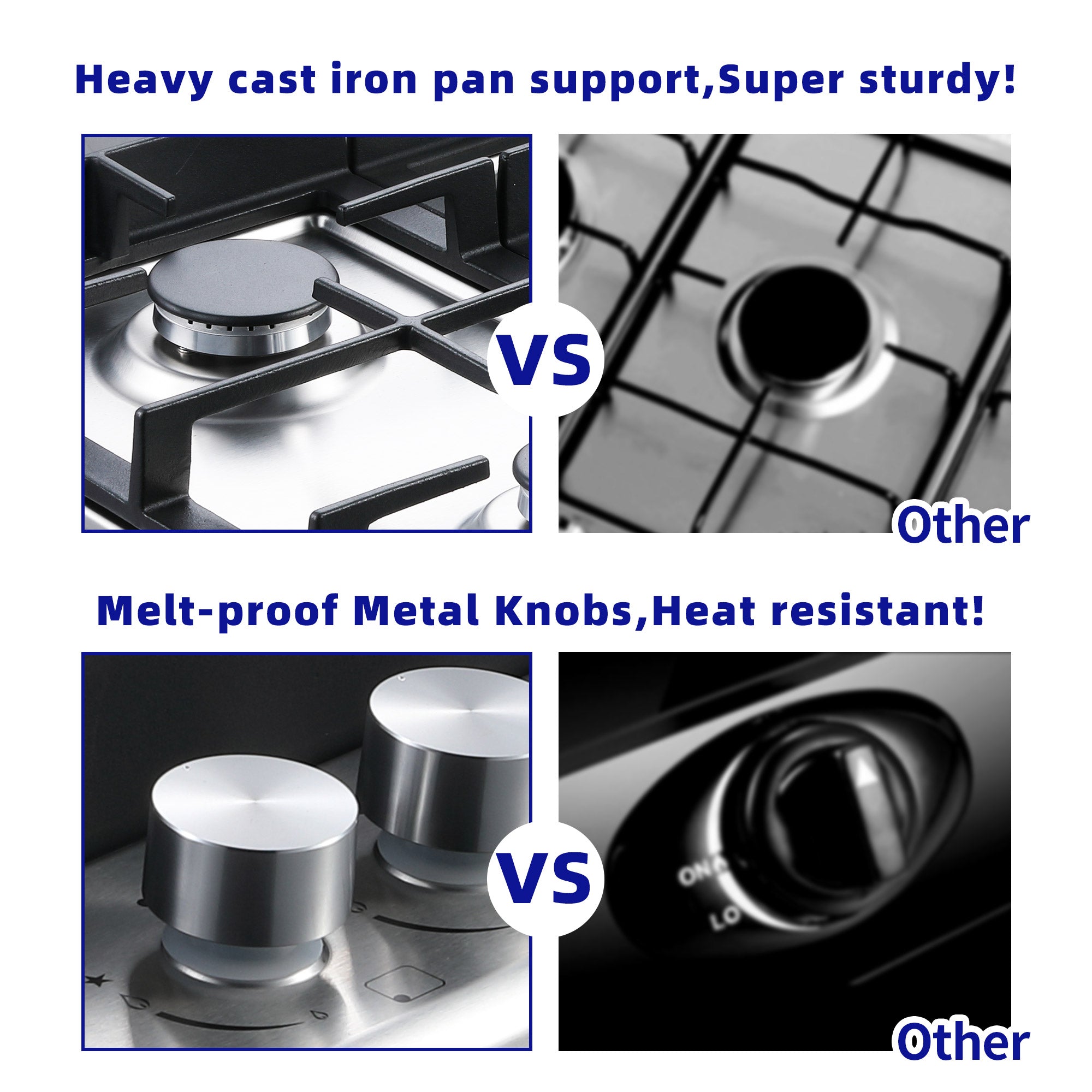

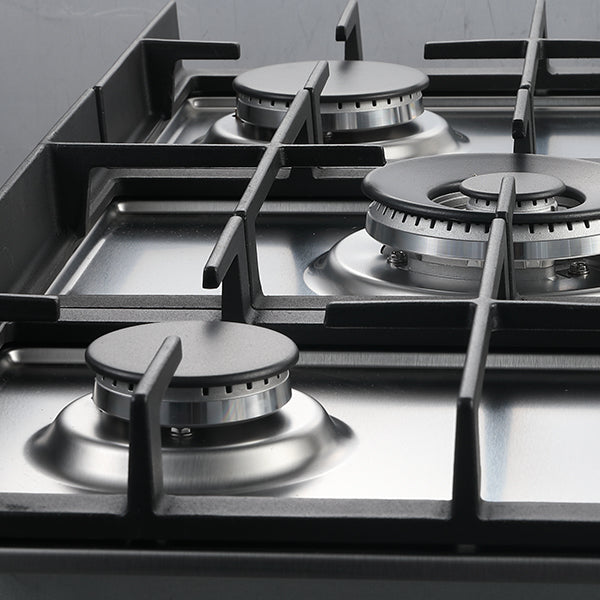

Heavy-Duty Cast Iron Pot Stand

The thickness of the grates is beyond your imagination, super stable and will not deformed, can support the pot firmly, avoid letting the pan drop off.

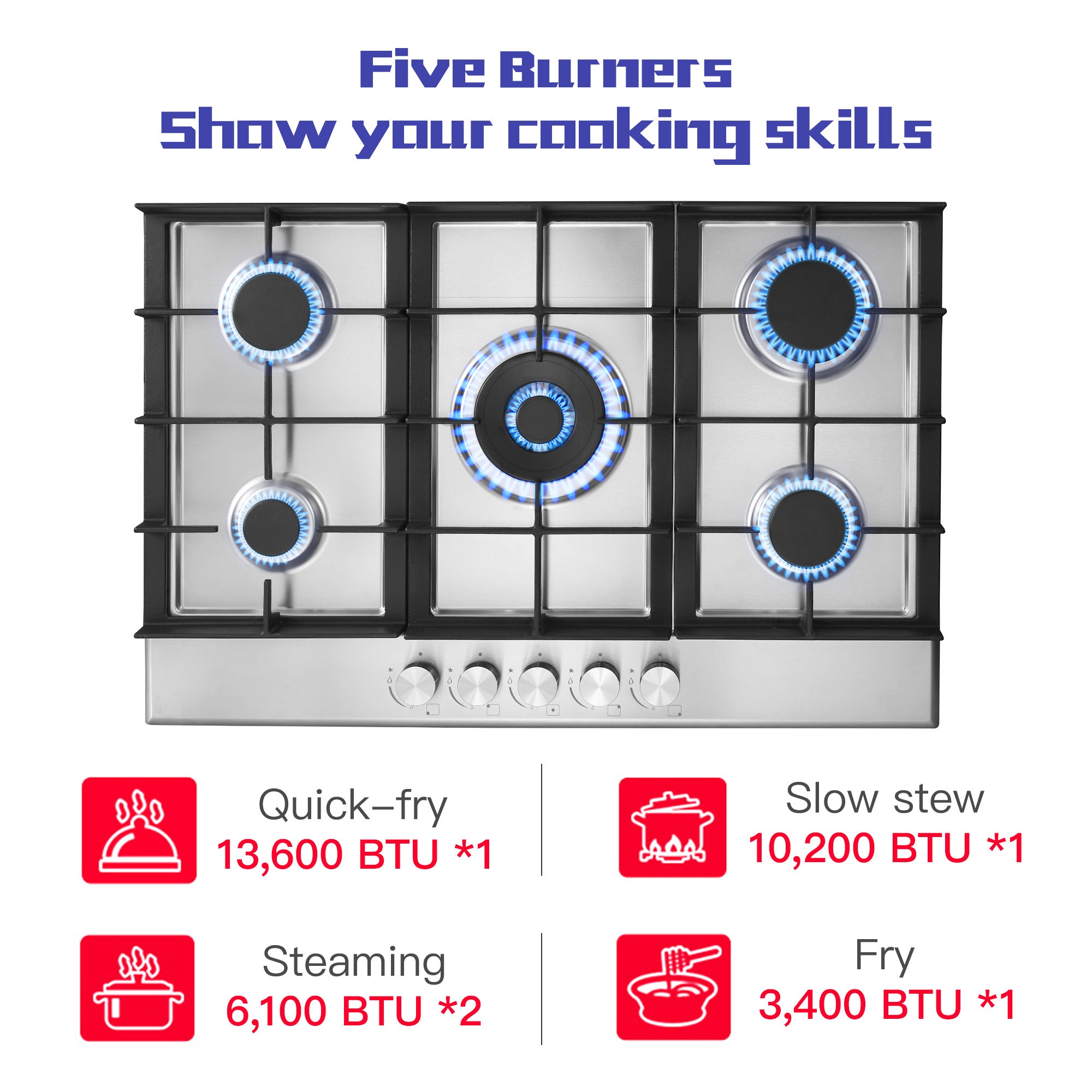

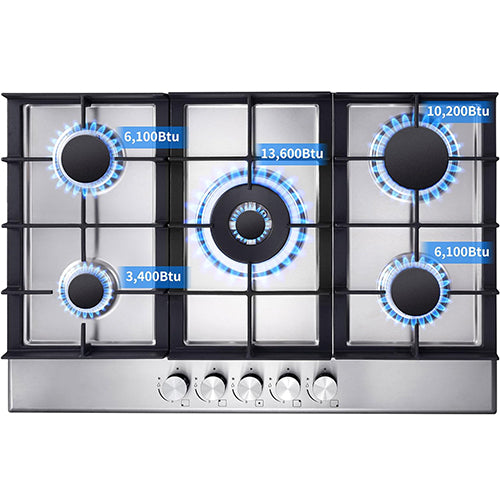

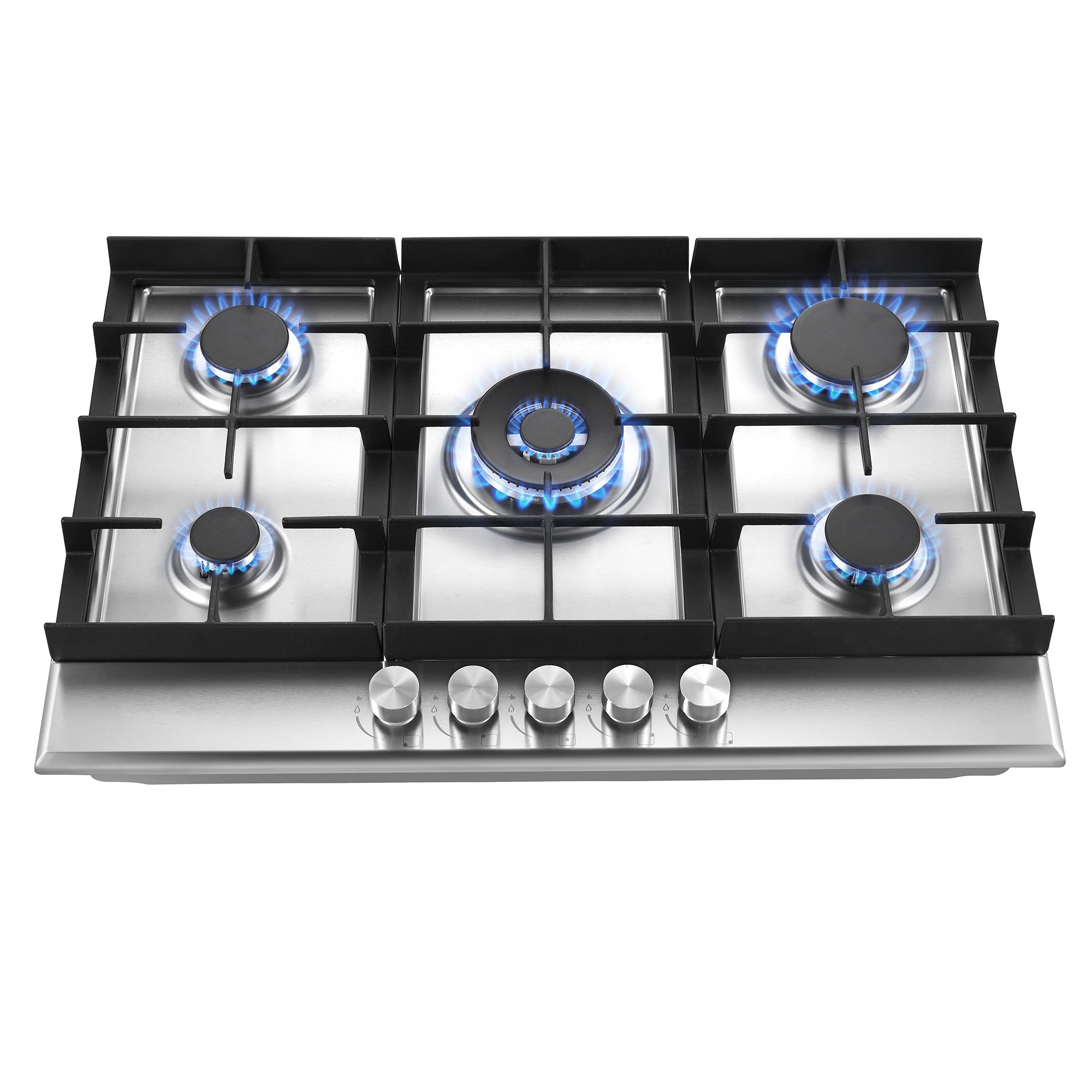

5 Burners Power

5 Burners Power

1x 13,600 BTU

1x 10,200 BTU

2x 6,100 BTU

1x 3,400 BTU

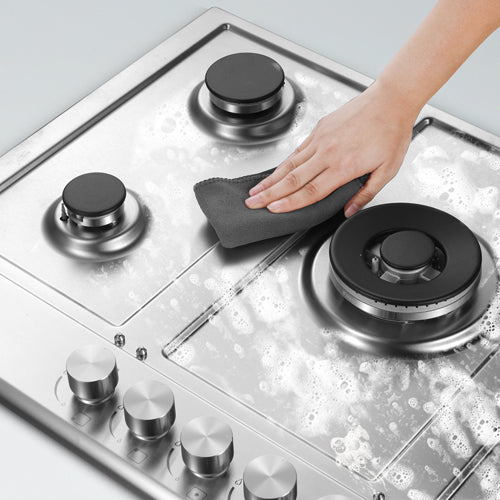

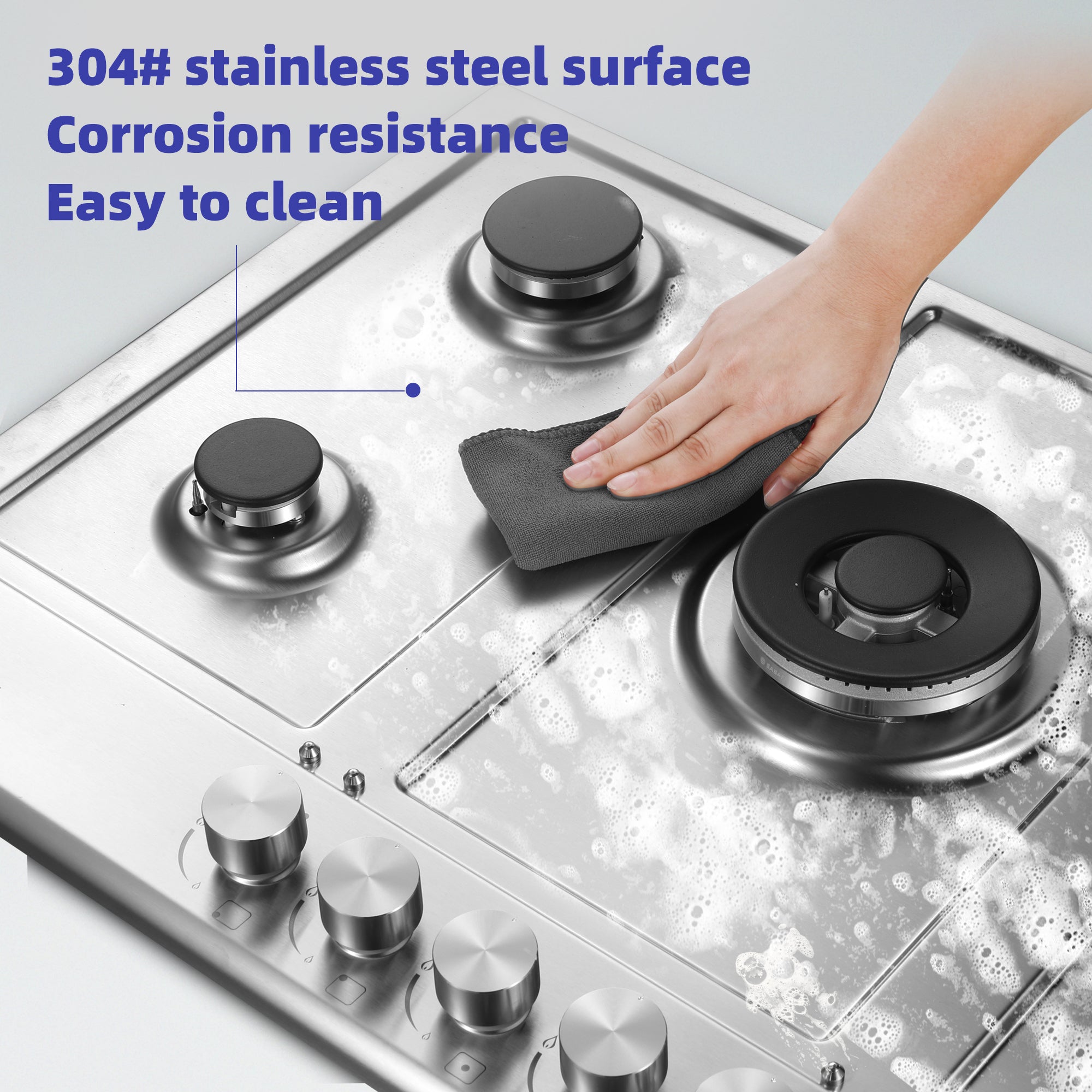

Easy to Clean

304# stainless steel surface
Corrosion resistance.

Specifications

Refer to all the specification information of the product, if you still have doubts, please contact us!

Product Size

Height

3.9 inch

Depth

20 inch

Width

30 inch

Cut Out Size

Height

3.9 inch

Depth

18.9 inch

Width

28 inch

Details

Part Number

‎GC002-305S

Item Weight

‎37.3 pounds

Product Dimensions

‎20"D x 29.9"W x 3.9"H

Special Features

‎Gas

Burner type

‎Sealed

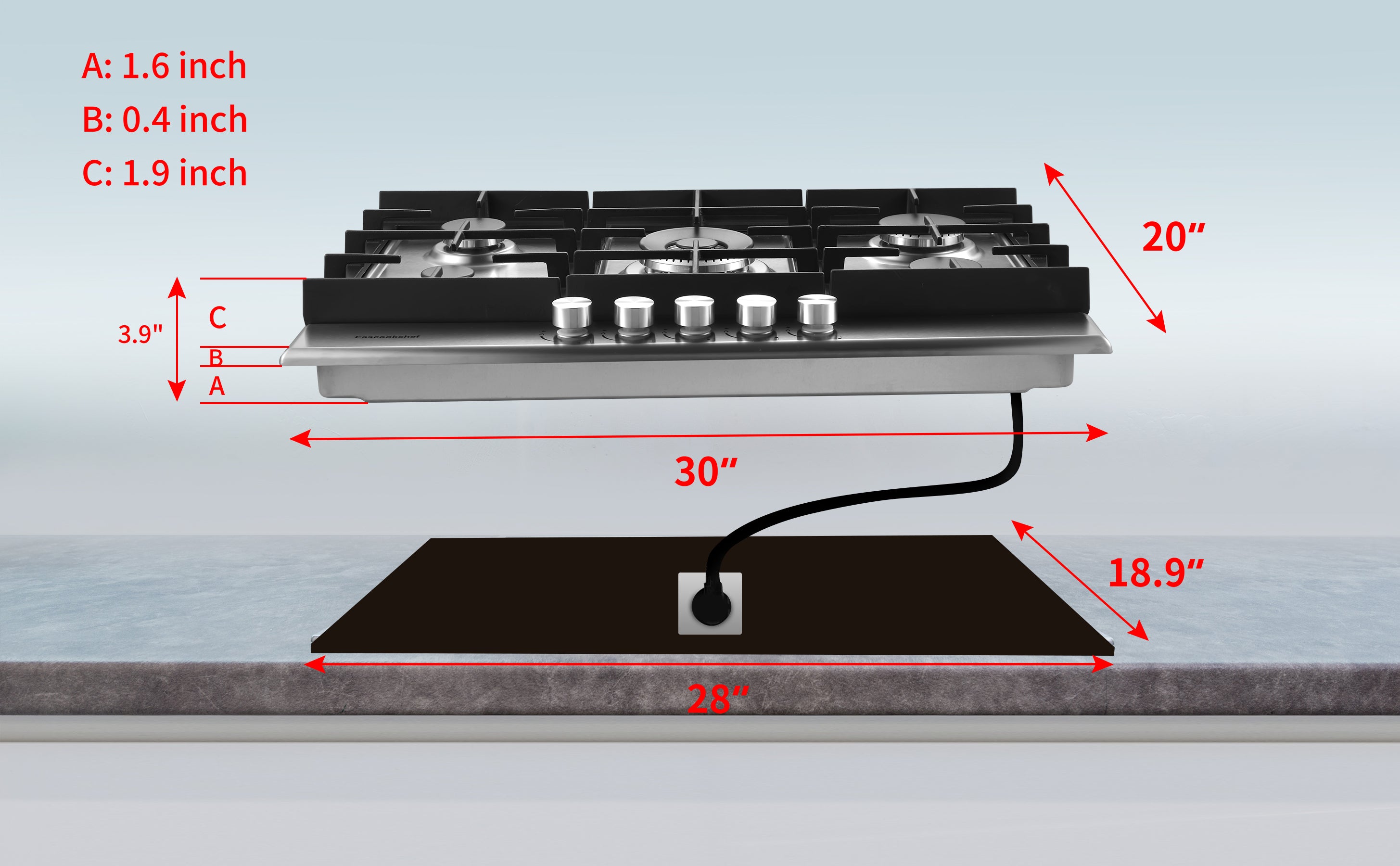

Installation of built-in gas cooktop

This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

  • Product Dimensions: 30" W x 20" L x 3.9"H
  • Cut out Dimensions: 28" Wx 18.9" L

For a correct installation, the following precautions must be followed:

a) Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness

b) In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.

c) When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.

Please note that:

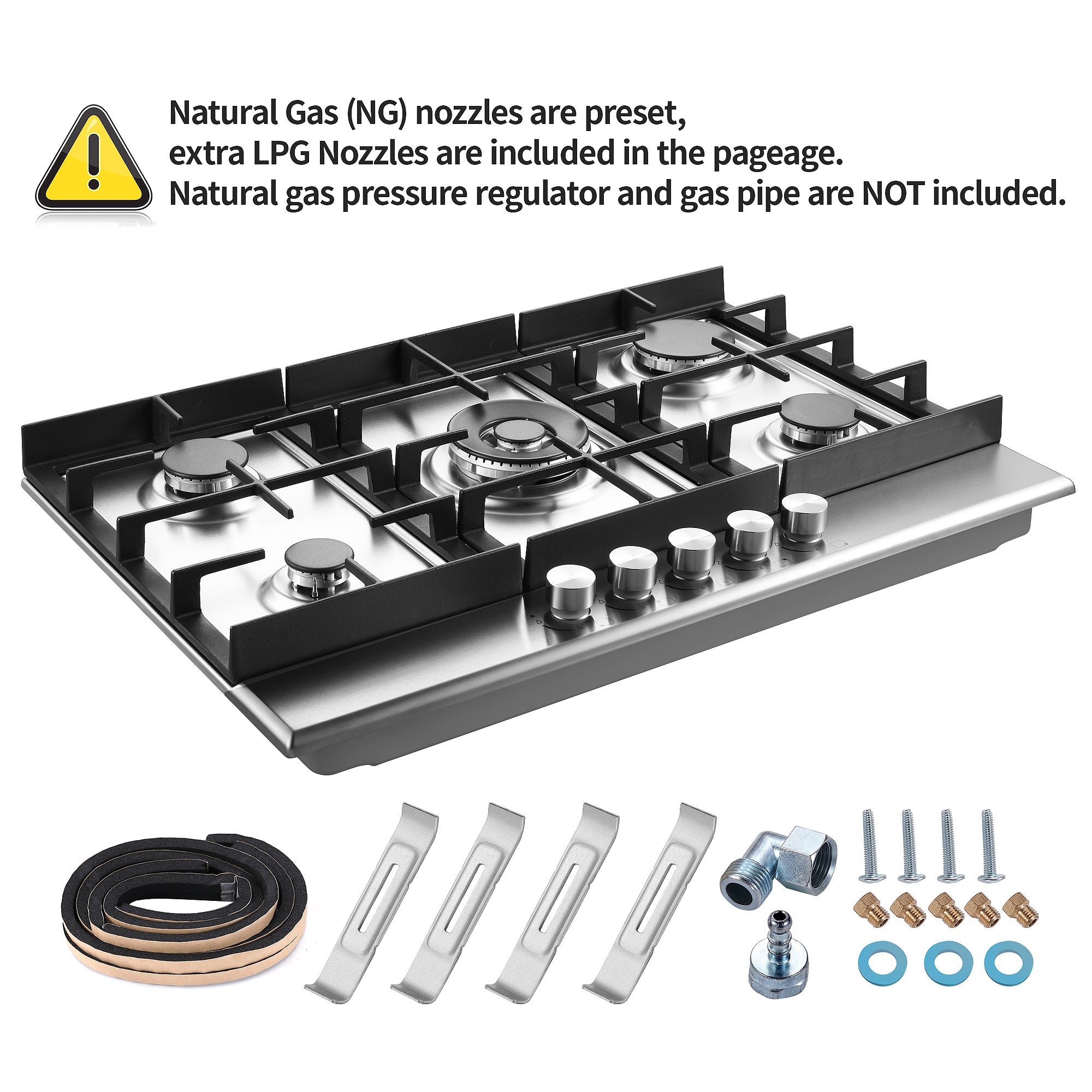

1) Extra LPG Nozzles included in the pageage, the natural gas pressure regulator and the gas pipe are NOT included.

2)It is recommended that gas stove be installed and tested by professionals.

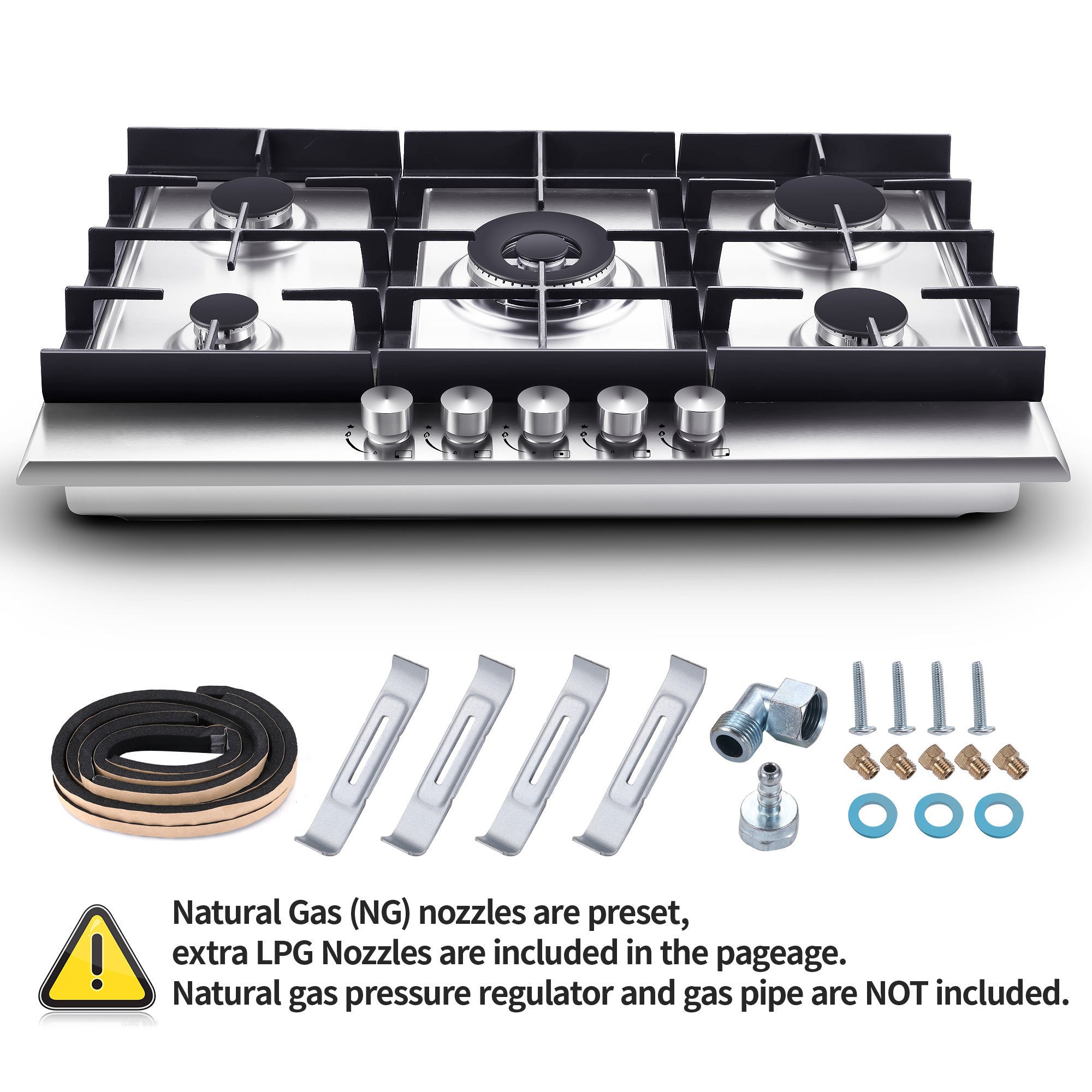

Package Included

30 inch Gas Cooktop with Wok Stand

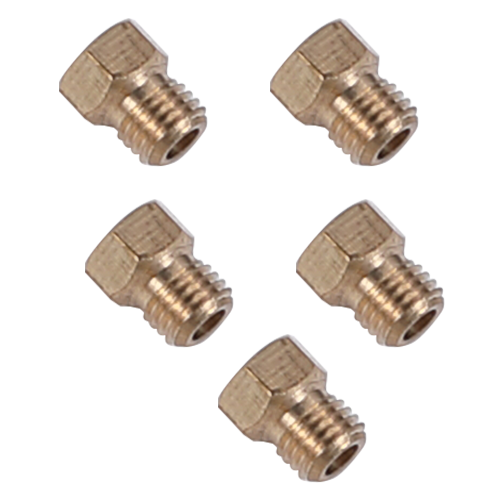

Preset NG nozzles(extra 5 Propane nozzles)

1/2 NPT Connector and Elbow Connector with sealing rings

Sealing strip, Mounting brackets and screws

User Manual

Tieasy

User Manual

GC002-305S, DOWNLOAD
